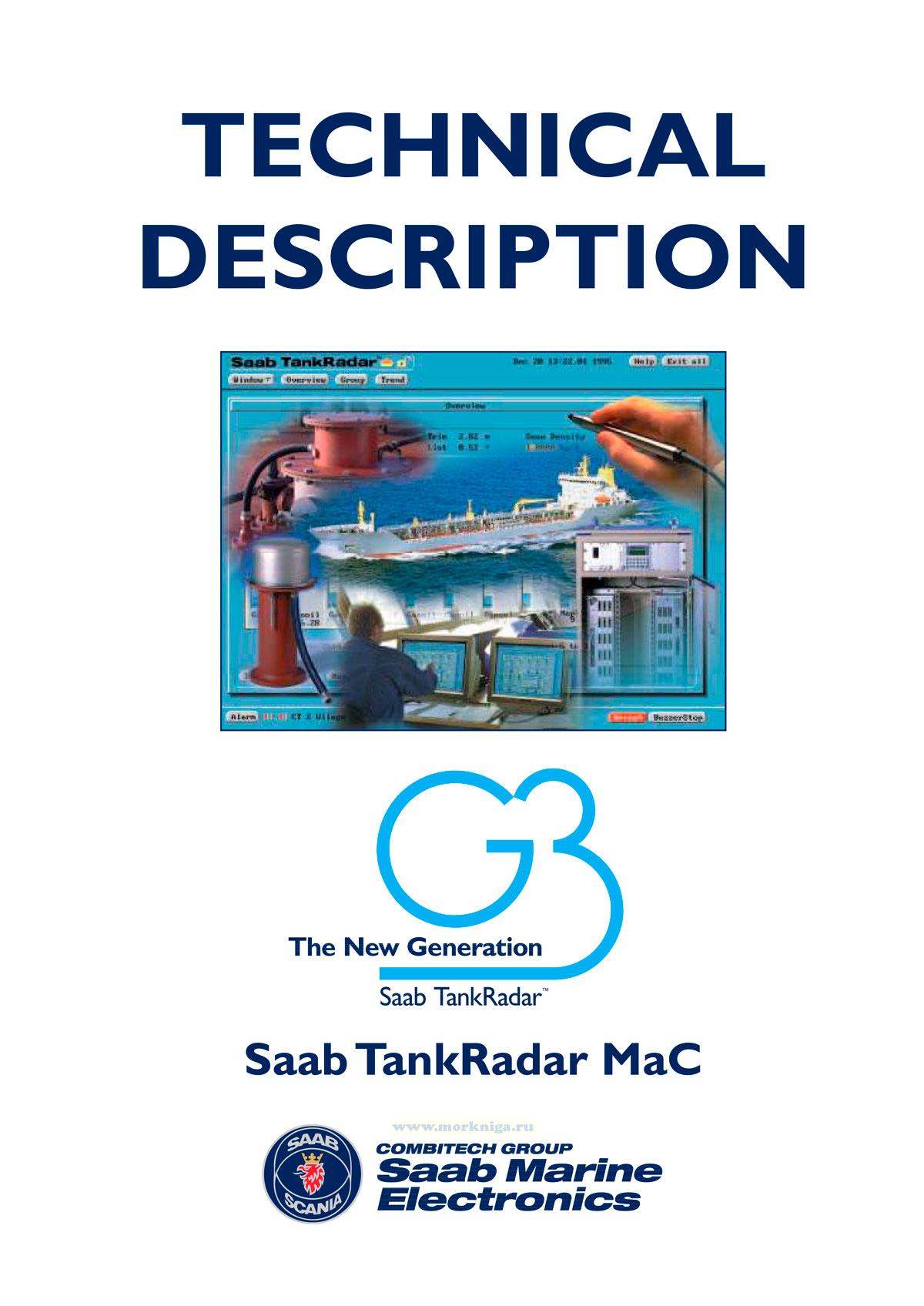

Technical Description Saab TankRadar G3/Техническое описание Saab TankRadar G3

Издание на английском языке
This book is a technical description of the Saab TankRadar G3 system, designed for non-contact tank level measurement using radar. It covers radar operating principles, the system's advantages in harsh operating conditions, electrical safety requirements, the design of the workstation, input/output units, level gauges, transmitters, and antennas. Special attention is given to equipment installation, additional functions for measuring temperature and inert gas pressure, local displays, portable readers, data printing, workstation redundancy, and system specifications.

Content
Abbreviations and Denominations
A Tough System for Rough Conditions
Meets the Strictest Requirements on Electrical Safety
Radar Principle and its Advantages
Non-Contact Gauging with Radar
"What happens if I'm hit by the radar beam?"
The Work Station - Easy to Learn and Easy to Use
I/O Box - Connects Level Unit and Other Equipment to a Work Station
The Level Unit - Rugged Design - Easy to Install
Information Flow within the Level Unit
Calculation Unit
Transmitter Interface
Power Block
The Transmitter - Two Types to Cover all Applications
Parabolic Antenna Transmitter
Cone Antenna Transmitter
Easy Installation of Saab TankRadar G3
A Flexible System to Meet our Customers' Requirements
Optional Equipment for Many Purposes
Temperature Measurement (Option)
Inert Gas Pressure Measurement (Option)
Local Display (Option)
Portable Readout System (Option)
Tank Display Unit (Option)
Printer (Option)
Saab TankRadar MaC
Work Station
Control Functions
Substation
Input/Output
Substation Cabinet
Substation Hand Terminal
Work Station Redundancy (Option)
Technical Specification
Index
