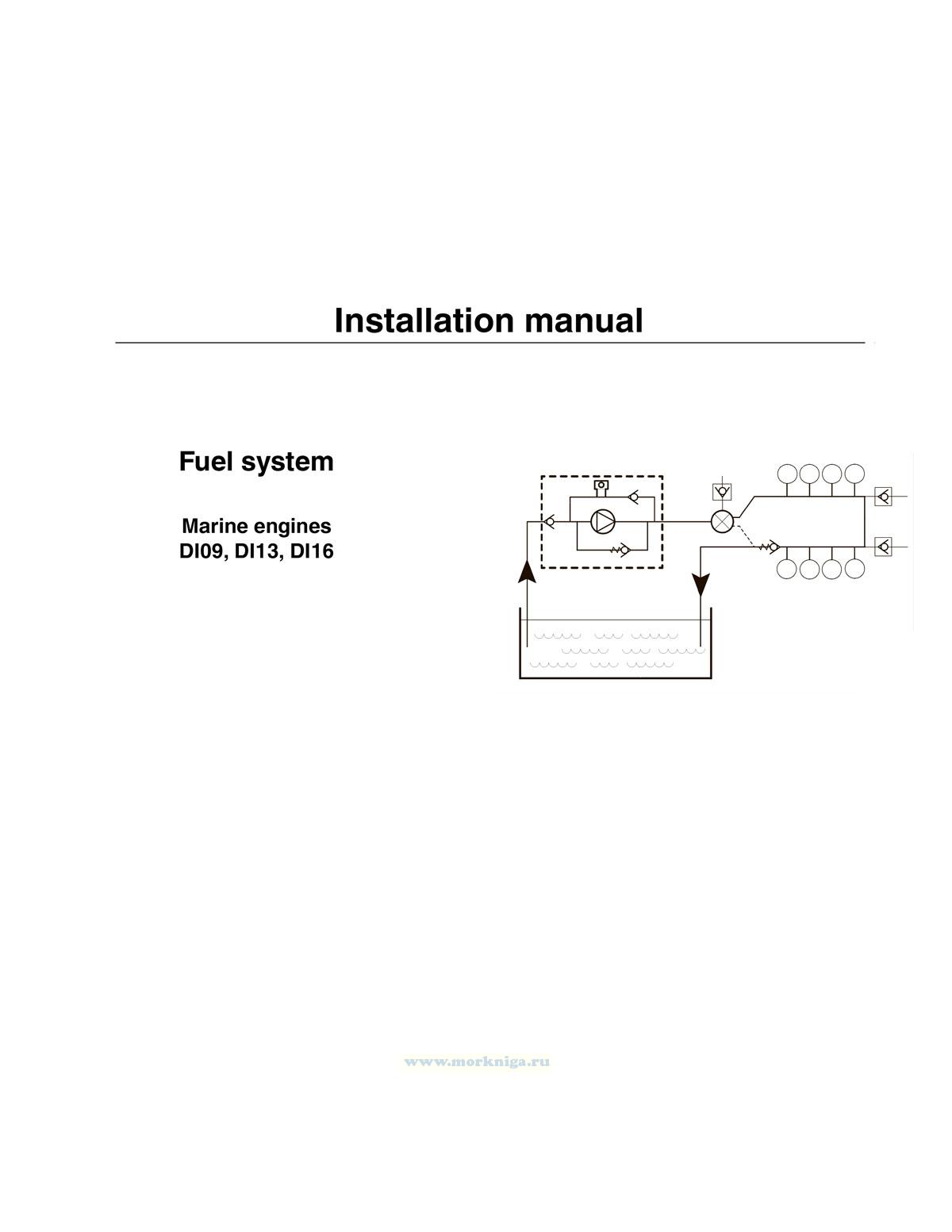

Installation manual Fuel system Marine engines DI09, DI13, DI16/Руководство по установке топливной системы судовых двигателей DI09, DI13, DI16

Издание на английском языке
This is a fuel system installation guide for marine engines DI09, DI13 and DI16. It describes the changes compared to the previous release, the location and design of the fuel tanks (main and buffer), the features of the fuel lines and filters for the PDE and XPI engines. Fuel cooling systems, fuel flow and pressure parameters, fire prevention measures, fuel quality requirements and power characteristics for PDE engines are also considered. Important technical data is provided at the end.

Contents
Changes from the previous issue
Fuel tank
Position
Fuel tank design
Main tank and buffer tank
Fuel lines
Fuel filter
PDE and XPI engines
PDE engines
XPI engines
Fuel cooler
Feed pump flow rates
Risk of fire
Fuel grade and power for PDE engines
Important data
