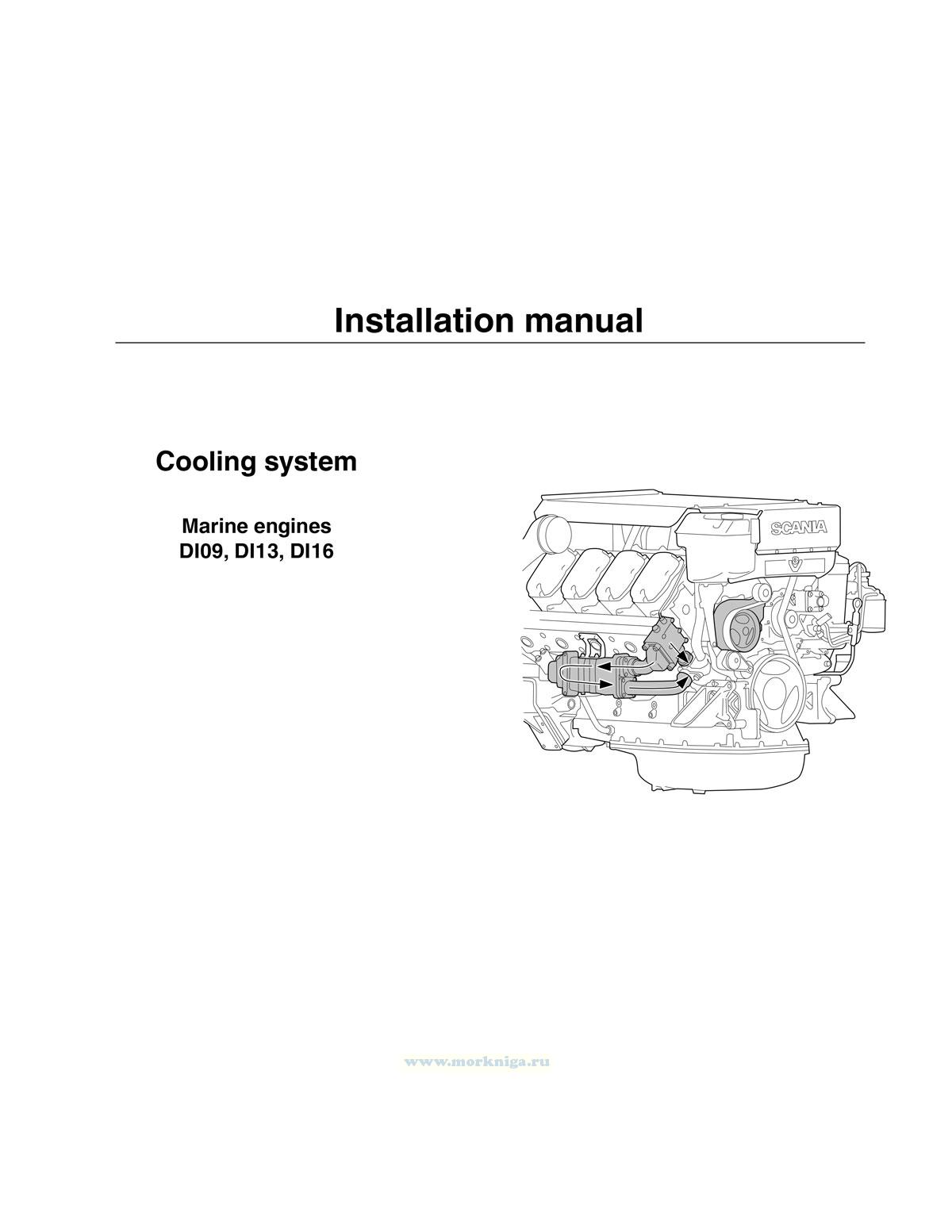

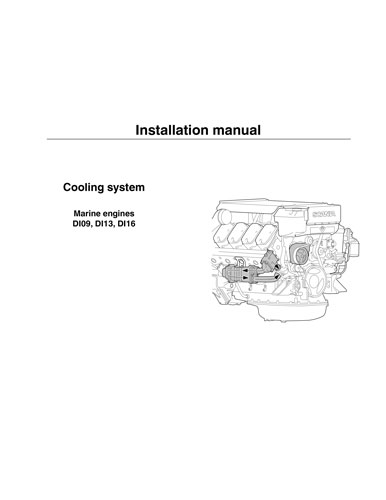

Installation manual Cooling system Marine engines DI09, DI13, DI16/Руководство по монтажу системы охлаждения судовых двигателей DI09, DI13, DI16

Издание на английском языке
The manuals describe the cooling system of marine engines DI09, DI13 and DI16. It discusses seawater and coolant circulation schemes, pump types, connection of expansion tanks, cell cooling systems (one or two circuits), as well as air cooling systems, oil radiators and cabin heating. The issues of preventing electrolytic corrosion and important technical parameters of the system are also highlighted.

Contents
Changes from the previous issue
Sea water circuit
Draining the sea water circuit
Pipes and hoses
Pressure ratios
Sea water intake
Sea water filter
Warning system for low sea water flow
Coolant circuit
Draining coolant
Filling coolant
Sea water and coolant flow of the water pumps
Pump with rubber impeller
Self-priming pump
Connecting an external expansion tank
Coolant volumes
Keel cooling
Keel cooling engines with 1 coolant circuit
Keel cooling engines with 2 coolant circuits
Pressure drop and coolant flow
Keel cooling design and installation
Cooling system with air-cooled cooler
Connecting an auxiliary oil cooler
Engines with heat exchanger
Engines with keel cooling
Connecting a cab heater
Immersion heater
Electrolytic corrosion
Important data
